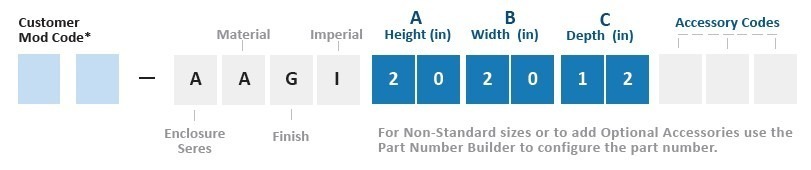

IMPERIAL A B C D E INTERNAL MOUNT PLATE

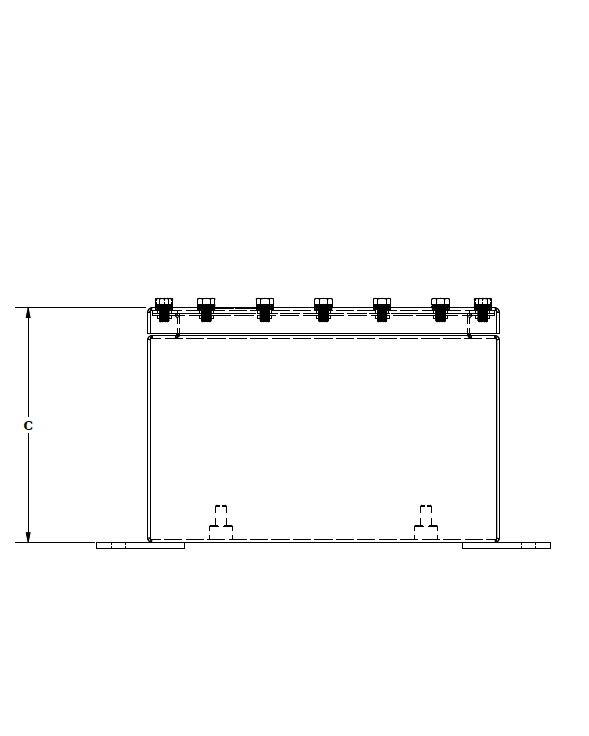

PART NUMBER Height Width Depth Mount Height Mount Width Height Width Gauge
in mm in mm in mm in mm in mm in mm in mm
AAGI222216 22 558.8 22 558.8 16 406.4 18 457.2 24 609.6 18 457.2 18 457.2 0.08″
AAGI222212 22 558.8 22 558.8 12 304.8 18 457.2 24 609.6 18 457.2 18 457.2 0.08″
AAGI222210 22 558.8 22 558.8 10 254.0 18 457.2 24 609.6 18 457.2 18 457.2 0.08″
AAGI222208 22 558.8 22 558.8 08 203.2 18 457.2 24 609.6 18 457.2 18 457.2 0.08″
AAGI221612 22 558.8 16 406.4 12 304.8 18 457.2 18 457.2 18 457.2 12 304.8 0.08″
AAGI221610 22 558.8 16 406.4 10 254.0 18 457.2 18 457.2 18 457.2 12 304.8 0.08″
AAGI221608 22 558.8 16 406.4 08 203.2 18 457.2 18 457.2 18 457.2 12 304.8 0.08″
AAGI221606 22 558.8 16 406.4 06 152.4 18 457.2 18 457.2 18 457.2 12 304.8 0.08″
AAGI221210 22 558.8 12 304.8 10 254.0 18 457.2 14 355.6 18 457.2 08 203.2 0.08″
AAGI221208 22 558.8 12 304.8 08 203.2 18 457.2 14 355.6 18 457.2 08 203.2 0.08″
AAGI221206 22 558.8 12 304.8 06 152.4 18 457.2 14 355.6 18 457.2 08 203.2 0.08″
AAGI202016 20 508.0 20 508.0 16 406.4 16 406.4 22 558.8 16 406.4 16 406.4 0.08″
AAGI202012 20 508.0 20 508.0 12 304.8 16 406.4 22 558.8 16 406.4 16 406.4 0.08″
AAGI202008 20 508.0 20 508.0 08 203.2 16 406.4 22 558.8 16 406.4 16 406.4 0.08″
AAGI202006 20 508.0 20 508.0 06 152.4 16 406.4 22 558.8 16 406.4 16 406.4 0.08″
AAGI201412 20 508.0 14 355.6 12 304.8 16 406.4 16 406.4 16 406.4 10 254.0 0.08″
AAGI201410 20 508.0 14 355.6 10 254.0 16 406.4 16 406.4 16 406.4 10 254.0 0.08″
AAGI201408 20 508.0 14 355.6 08 203.2 16 406.4 16 406.4 16 406.4 10 254.0 0.08″
AAGI201406 20 508.0 14 355.6 06 152.4 16 406.4 16 406.4 16 406.4 10 254.0 0.08″
AAGI201210 20 508.0 12 304.8 10 254.0 16 406.4 14 355.6 16 406.4 08 203.2 0.08″
AAGI201208 20 508.0 12 304.8 08 203.2 16 406.4 14 355.6 16 406.4 08 203.2 0.08″
AAGI201206 20 508.0 12 304.8 06 152.4 16 406.4 14 355.6 16 406.4 08 203.2 0.08″
AAGI181814 18 457.2 18 457.2 14 355.6 14 355.6 20 508.0 14 355.6 14 355.6 0.08″
AAGI181812 18 457.2 18 457.2 12 304.8 14 355.6 20 508.0 14 355.6 14 355.6 0.08″
AAGI181808 18 457.2 18 457.2 08 203.2 14 355.6 20 508.0 14 355.6 14 355.6 0.08″
AAGI181806 18 457.2 18 457.2 06 152.4 14 355.6 20 508.0 14 355.6 14 355.6 0.08″
AAGI181412 18 457.2 14 355.6 12 304.8 14 355.6 16 406.4 14 355.6 10 254.0 0.08″
AAGI181410 18 457.2 14 355.6 10 254.0 14 355.6 16 406.4 14 355.6 10 254.0 0.08″
AAGI181408 18 457.2 14 355.6 08 203.2 14 355.6 16 406.4 14 355.6 10 254.0 0.08″
AAGI181406 18 457.2 14 355.6 06 152.4 14 355.6 16 406.4 14 355.6 10 254.0 0.08″
AAGI181210 18 457.2 12 304.8 10 254.0 14 355.6 14 355.6 14 355.6 08 203.2 0.08″
AAGI181208 18 457.2 12 304.8 08 203.2 14 355.6 14 355.6 14 355.6 08 203.2 0.08″
AAGI181206 18 457.2 12 304.8 06 152.4 14 355.6 14 355.6 14 355.6 08 203.2 0.08″
AAGI161612 16 406.4 16 406.4 12 304.8 12 304.8 18 457.2 12 304.8 12 304.8 0.08″
AAGI161610 16 406.4 16 406.4 10 254.0 12 304.8 18 457.2 12 304.8 12 304.8 0.08″
AAGI161608 16 406.4 16 406.4 08 203.2 12 304.8 18 457.2 12 304.8 12 304.8 0.08″
AAGI161606 16 406.4 16 406.4 06 152.4 12 304.8 18 457.2 12 304.8 12 304.8 0.08″
AAGI161412 16 406.4 14 355.6 12 304.8 12 304.8 16 406.4 12 304.8 10 254.0 0.08″
AAGI161410 16 406.4 14 355.6 10 254.0 12 304.8 16 406.4 12 304.8 10 254.0 0.08″
AAGI161408 16 406.4 14 355.6 08 203.2 12 304.8 16 406.4 12 304.8 10 254.0 0.08″
AAGI161406 16 406.4 14 355.6 06 152.4 12 304.8 16 406.4 12 304.8 10 254.0 0.08″
AAGI161210 16 406.4 12 304.8 10 254.0 12 304.8 14 355.6 12 304.8 08 203.2 0.08″
AAGI161208 16 406.4 12 304.8 08 203.2 12 304.8 14 355.6 12 304.8 08 203.2 0.08″
AAGI161206 16 406.4 12 304.8 06 152.4 12 304.8 14 355.6 12 304.8 08 203.2 0.08″
AAGI141412 14 355.6 14 355.6 12 304.8 10 254.0 16 406.4 10 254.0 10 254.0 0.08″
AAGI141410 14 355.6 14 355.6 10 254.0 10 254.0 16 406.4 10 254.0 10 254.0 0.08″
AAGI141408 14 355.6 14 355.6 08 203.2 10 254.0 16 406.4 10 254.0 10 254.0 0.08″
AAGI141406 14 355.6 14 355.6 06 152.4 10 254.0 16 406.4 10 254.0 10 254.0 0.08″
AAGI141210 14 355.6 12 304.8 10 254.0 10 254.0 14 355.6 10 254.0 08 203.2 0.08″
AAGI141208 14 355.6 12 304.8 08 203.2 10 254.0 14 355.6 10 254.0 08 203.2 0.08″
AAGI141206 14 355.6 12 304.8 06 152.4 10 254.0 14 355.6 10 254.0 08 203.2 0.08″
AAGI121210 12 304.8 12 304.8 10 254.0 08 203.2 14 355.6 08 203.2 08 203.2 0.08″
AAGI121208 12 304.8 12 304.8 08 203.2 08 203.2 14 355.6 08 203.2 08 203.2 0.08″
AAGI121206 12 304.8 12 304.8 06 152.4 08 203.2 14 355.6 08 203.2 08 203.2 0.08″
AAGI121008 12 304.8 10 254.0 08 203.2 08 203.2 12 304.8 08 203.2 06 152.4 0.08″
AAGI121006 12 304.8 10 254.0 06 152.4 08 203.2 12 304.8 08 203.2 06 152.4 0.08″



METRIC A B C D E INTERNAL MOUNT PLATE
PART NUMBER Height Width Depth Mount Height Mount Width Height Width Gauge
cm mm cm mm cm mm cm mm cm mm cm mm cm mm
AAG555545 55 550.0 55 550.0 40 400.0 45 450.0 60 600.0 45 450.0 45 450.0 2.00
AAG555530 55 550.0 55 550.0 30 300.0 45 450.0 60 600.0 45 450.0 45 450.0 2.00
AAG555525 55 550.0 55 550.0 25 250.0 45 450.0 60 600.0 45 450.0 45 450.0 2.00
AAG555520 55 550.0 55 550.0 20 200.0 45 450.0 60 600.0 45 450.0 45 450.0 2.00
AAG554030 55 550.0 40 400.0 30 300.0 45 450.0 45 450.0 45 450.0 30 300.0 2.00
AAG554025 55 550.0 40 400.0 25 250.0 45 450.0 45 450.0 45 450.0 30 300.0 2.00
AAG554020 55 550.0 40 400.0 20 200.0 45 450.0 45 450.0 45 450.0 30 300.0 2.00
AAG554015 55 550.0 40 400.0 15 150.0 45 450.0 45 450.0 45 450.0 30 300.0 2.00
AAG553025 55 550.0 30 300.0 25 250.0 45 450.0 35 350.0 45 450.0 20 200.0 2.00
AAG553020 55 550.0 30 300.0 20 200.0 45 450.0 35 350.0 45 450.0 20 200.0 2.00
AAG553015 55 550.0 30 300.0 15 150.0 45 450.0 35 350.0 45 450.0 20 200.0 2.00
AAG505040 50 500.0 50 500.0 40 400.0 40 400.0 55 550.0 40 400.0 40 400.0 2.00
AAG505030 50 500.0 50 500.0 30 300.0 40 400.0 55 550.0 40 400.0 40 400.0 2.00
AAG505020 50 500.0 50 500.0 20 200.0 40 400.0 55 550.0 40 400.0 40 400.0 2.00
AAG505015 50 500.0 50 500.0 15 150.0 40 400.0 55 550.0 40 400.0 40 400.0 2.00
AAG503530 50 500.0 35 350.0 30 300.0 40 400.0 40 400.0 40 400.0 25 250.0 2.00
AAG503525 50 500.0 35 350.0 25 250.0 40 400.0 40 400.0 40 400.0 25 250.0 2.00
AAG503520 50 500.0 35 350.0 20 200.0 40 400.0 40 400.0 40 400.0 25 250.0 2.00
AAG503515 50 500.0 35 350.0 15 150.0 40 400.0 40 400.0 40 400.0 25 250.0 2.00
AAG503025 50 500.0 30 300.0 25 250.0 40 400.0 35 350.0 40 400.0 20 200.0 2.00
AAG503020 50 500.0 30 300.0 20 200.0 40 400.0 35 350.0 40 400.0 20 200.0 2.00
AAG503015 50 500.0 30 300.0 15 150.0 40 400.0 35 350.0 40 400.0 20 200.0 2.00
AAG454535 45 450.0 45 450.0 35 350.0 35 350.0 50 500.0 35 350.0 35 350.0 2.00
AAG454530 45 450.0 45 450.0 30 300.0 35 350.0 50 500.0 35 350.0 35 350.0 2.00
AAG454520 45 450.0 45 450.0 20 200.0 35 350.0 50 500.0 35 350.0 35 350.0 2.00
AAG454515 45 450.0 45 450.0 15 150.0 35 350.0 50 500.0 35 350.0 35 350.0 2.00
AAG453530 45 450.0 35 350.0 30 300.0 35 350.0 40 400.0 35 350.0 25 250.0 2.00
AAG453525 45 450.0 35 350.0 25 250.0 35 350.0 40 400.0 35 350.0 25 250.0 2.00
AAG453520 45 450.0 35 350.0 20 200.0 35 350.0 40 400.0 35 350.0 25 250.0 2.00
AAG453515 45 450.0 35 350.0 15 150.0 35 350.0 40 400.0 35 350.0 25 250.0 2.00
AAG453025 45 450.0 30 300.0 25 250.0 35 350.0 35 350.0 35 350.0 20 200.0 2.00
AAG453020 45 450.0 30 300.0 20 200.0 35 350.0 35 350.0 35 350.0 20 200.0 2.00
AAG453015 45 450.0 30 300.0 15 150.0 35 350.0 35 350.0 35 350.0 20 200.0 2.00
AAG404030 40 400.0 40 400.0 30 300.0 30 300.0 45 450.0 30 300.0 30 300.0 2.00
AAG404025 40 400.0 40 400.0 25 250.0 30 300.0 45 450.0 30 300.0 30 300.0 2.00
AAG404020 40 400.0 40 400.0 20 200.0 30 300.0 45 450.0 30 300.0 30 300.0 2.00
AAG404015 40 400.0 40 400.0 15 150.0 30 300.0 45 450.0 30 300.0 30 300.0 2.00
AAG403530 40 400.0 35 350.0 30 300.0 30 300.0 40 400.0 30 300.0 25 250.0 2.00
AAG403525 40 400.0 35 350.0 25 250.0 30 300.0 40 400.0 30 300.0 25 250.0 2.00
AAG403520 40 400.0 35 350.0 20 200.0 30 300.0 40 400.0 30 300.0 25 250.0 2.00
AAG403515 40 400.0 35 350.0 15 150.0 30 300.0 40 400.0 30 300.0 25 250.0 2.00
AAG403025 40 400.0 30 300.0 25 250.0 30 300.0 35 350.0 30 300.0 20 200.0 2.00
AAG403020 40 400.0 30 300.0 20 200.0 30 300.0 35 350.0 30 300.0 20 200.0 2.00
AAG403015 40 400.0 30 300.0 15 150.0 30 300.0 35 350.0 30 300.0 20 200.0 2.00
AAG353530 35 350.0 35 350.0 30 300.0 25 250.0 40 400.0 25 250.0 25 250.0 2.00
AAG353525 35 350.0 35 350.0 25 250.0 25 250.0 40 400.0 25 250.0 25 250.0 2.00
AAG353520 35 350.0 35 350.0 20 200.0 25 250.0 40 400.0 25 250.0 25 250.0 2.00
AAG353515 35 350.0 35 350.0 15 150.0 25 250.0 40 400.0 25 250.0 25 250.0 2.00
AAG353025 35 350.0 30 300.0 25 250.0 25 250.0 35 350.0 25 250.0 20 200.0 2.00
AAG353020 35 350.0 30 300.0 20 200.0 25 250.0 35 350.0 25 250.0 20 200.0 2.00
AAG353015 35 350.0 30 300.0 15 150.0 25 250.0 35 350.0 25 250.0 20 200.0 2.00
AAG303025 30 300.0 30 300.0 25 250.0 20 200.0 35 350.0 20 200.0 20 200.0 2.00
AAG303020 30 300.0 30 300.0 20 200.0 20 200.0 35 350.0 20 200.0 20 200.0 2.00
AAG303015 30 300.0 30 300.0 15 150.0 20 200.0 35 350.0 20 200.0 20 200.0 2.00
AAG302520 30 300.0 25 250.0 20 200.0 20 200.0 30 300.0 20 200.0 15 150.0 2.00
AAG302515 30 300.0 25 250.0 15 150.0 20 200.0 30 300.0 20 200.0 15 150.0 2.00



COMPACT SUBMERSIBLE ENCLOSURE OVERVIEW

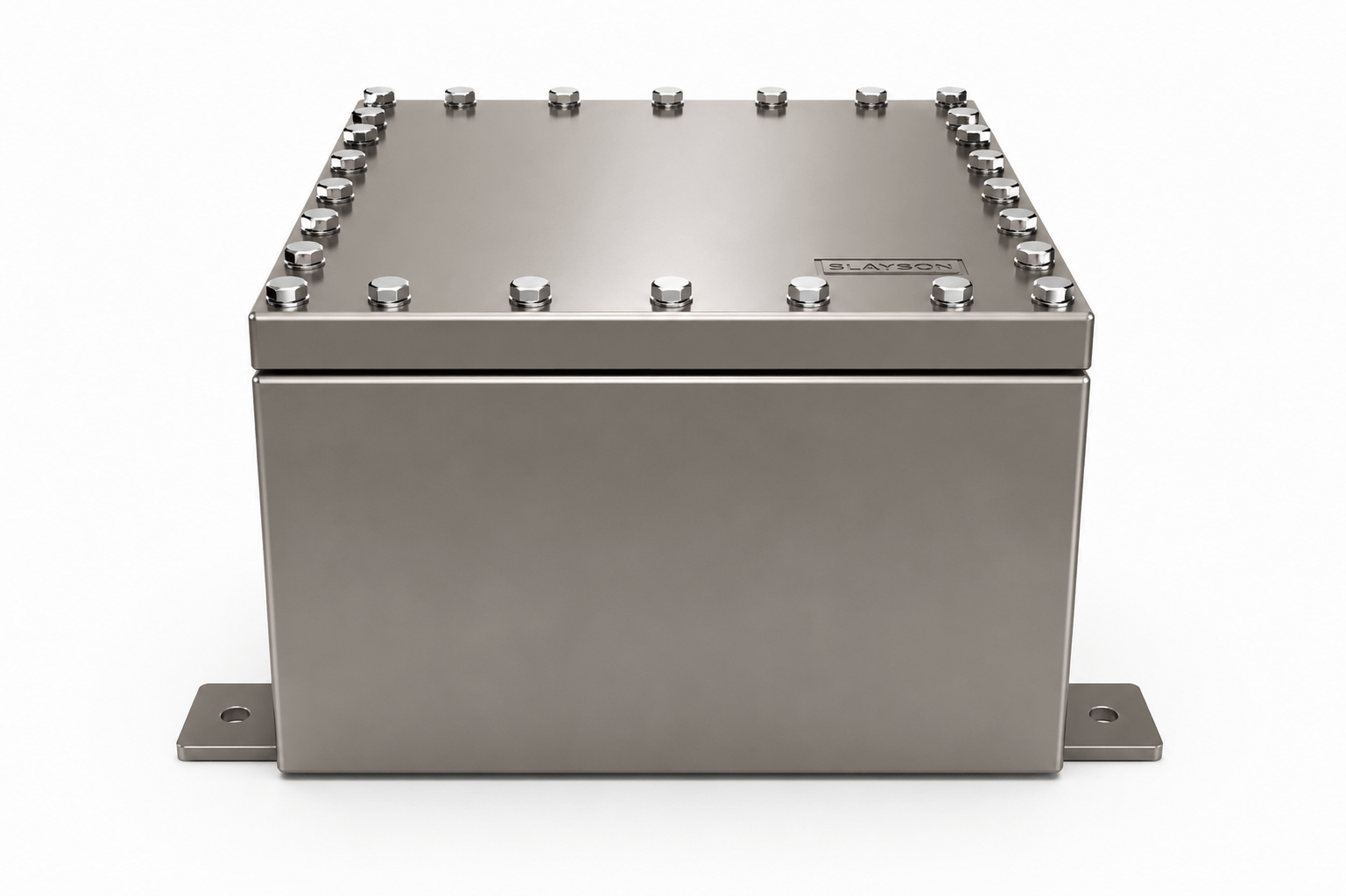

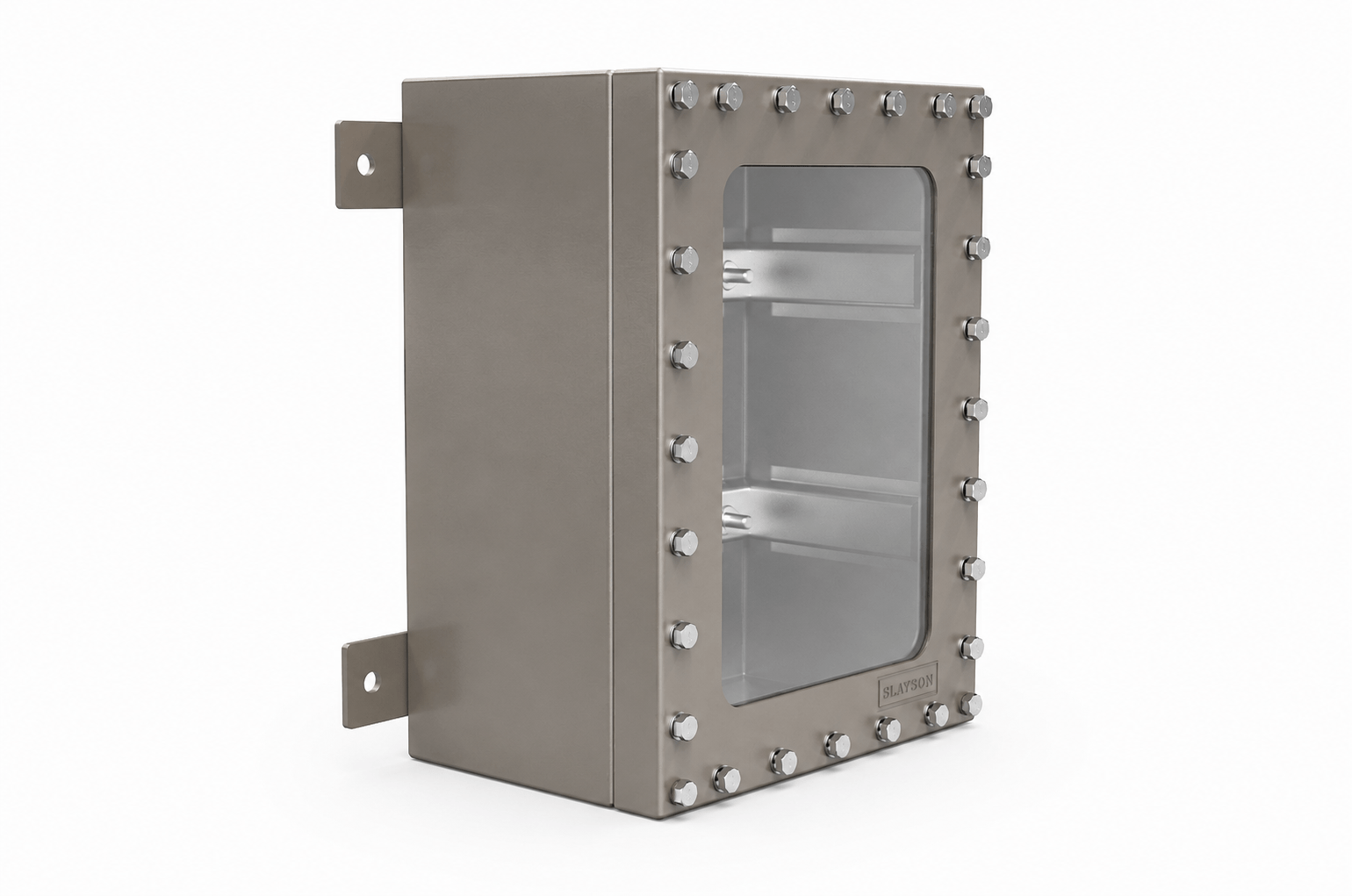

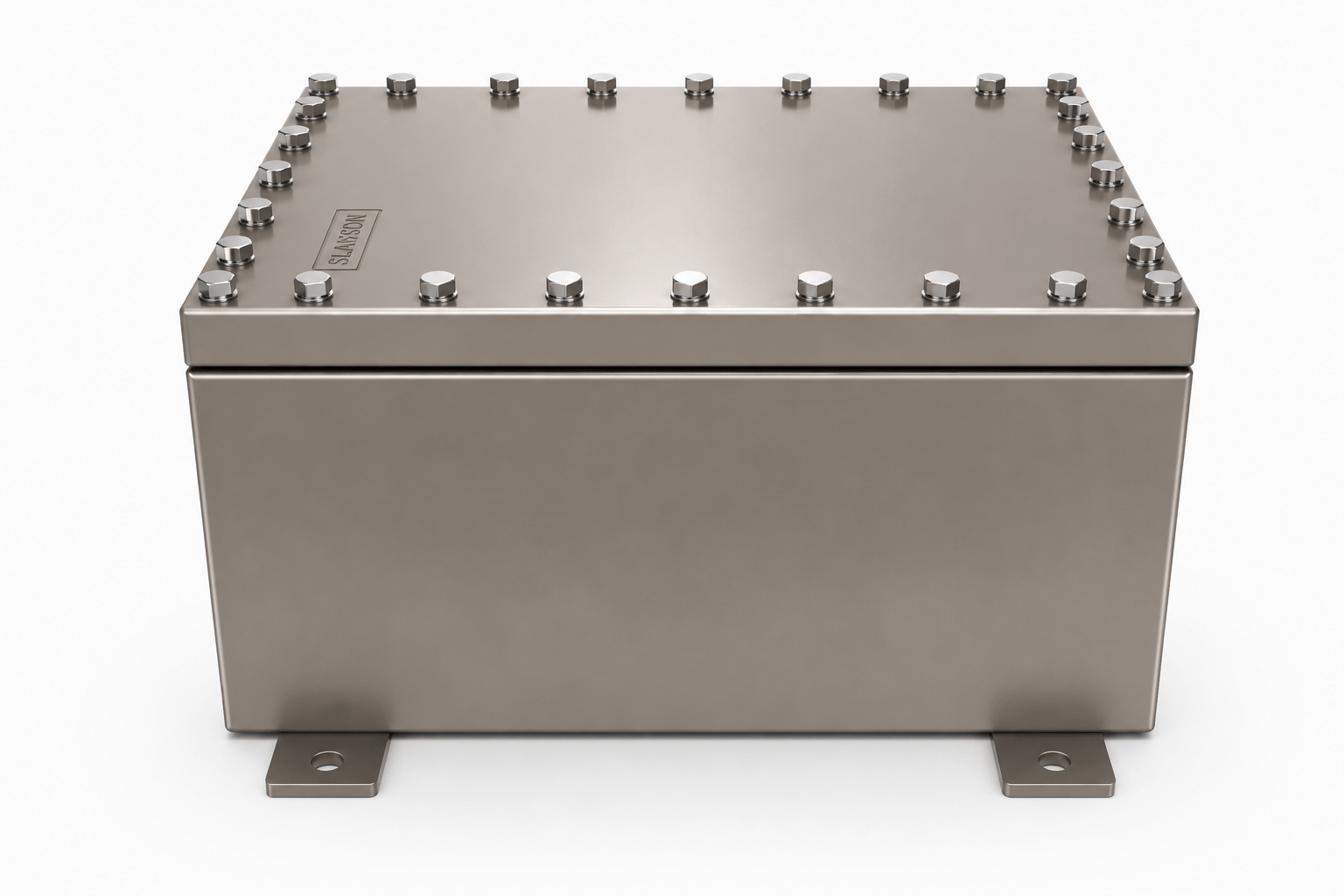

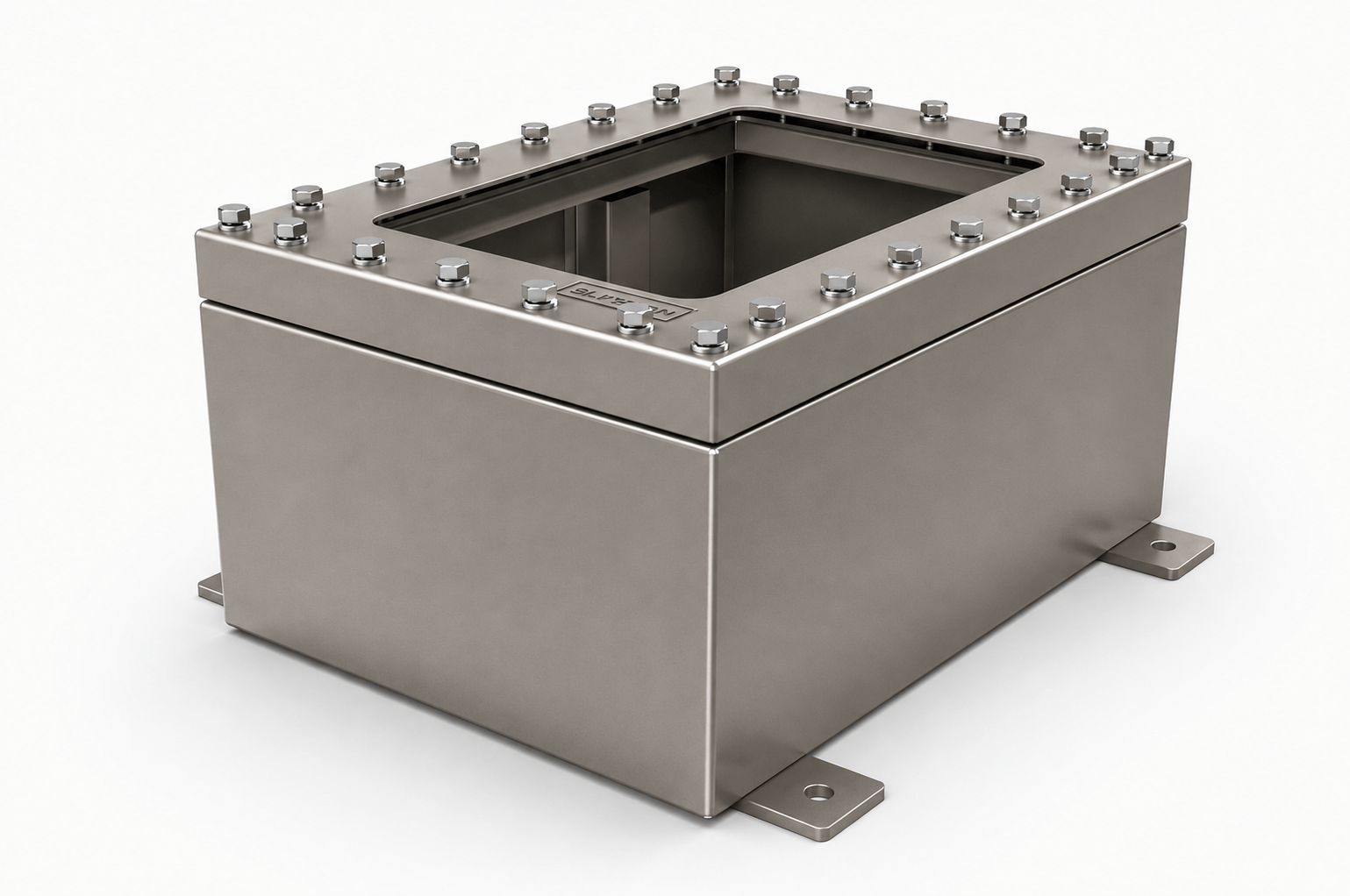

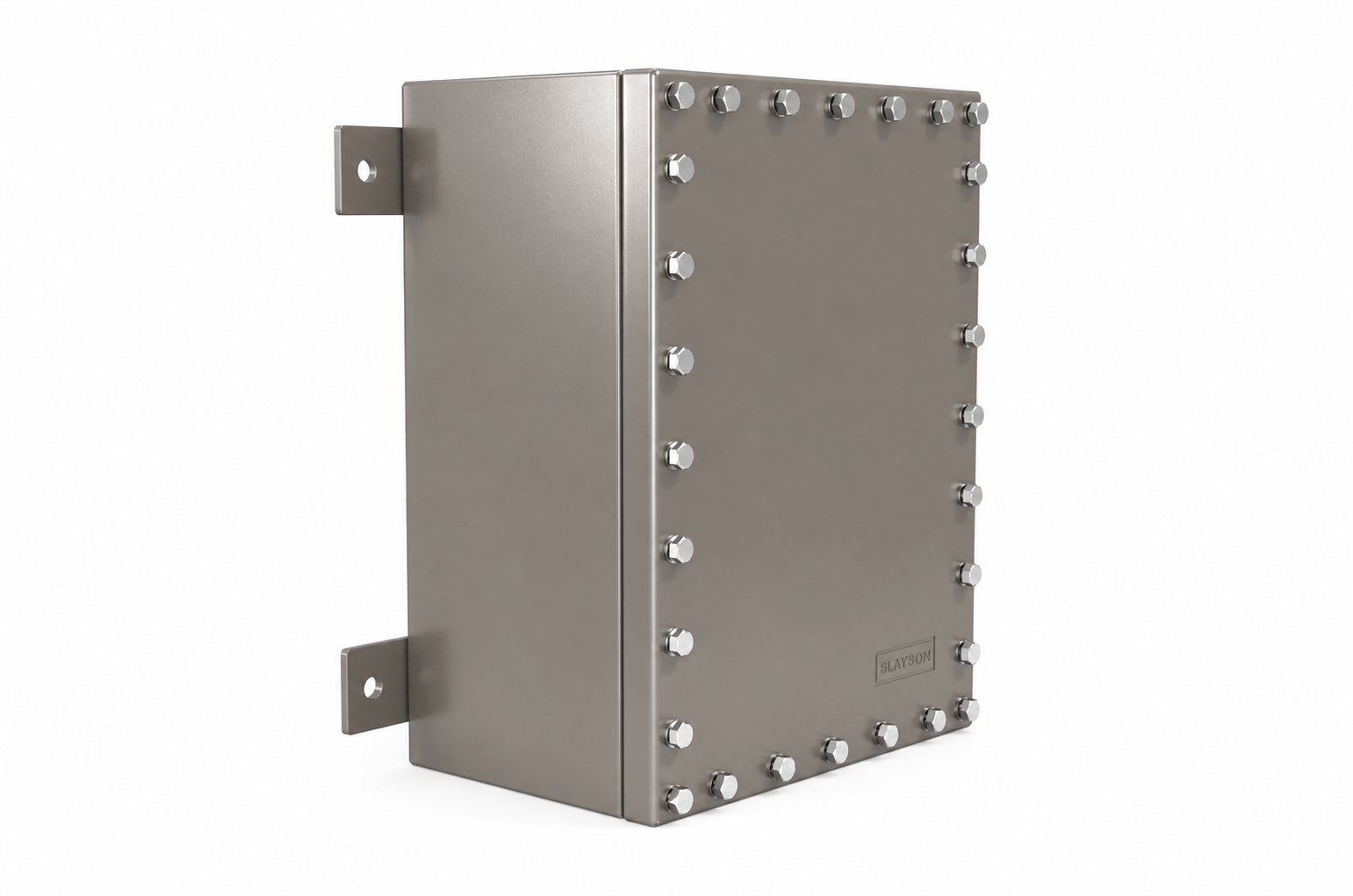

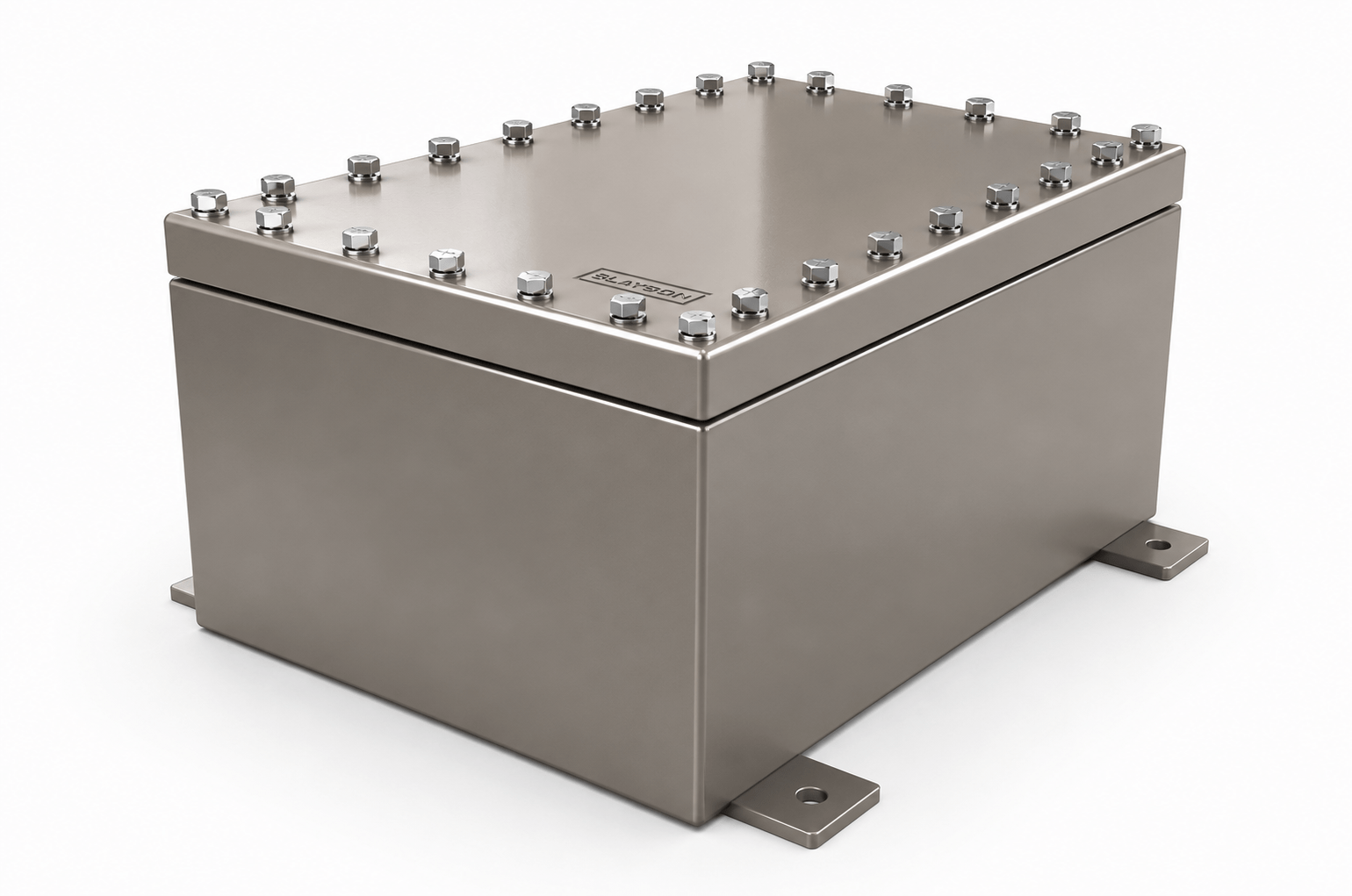

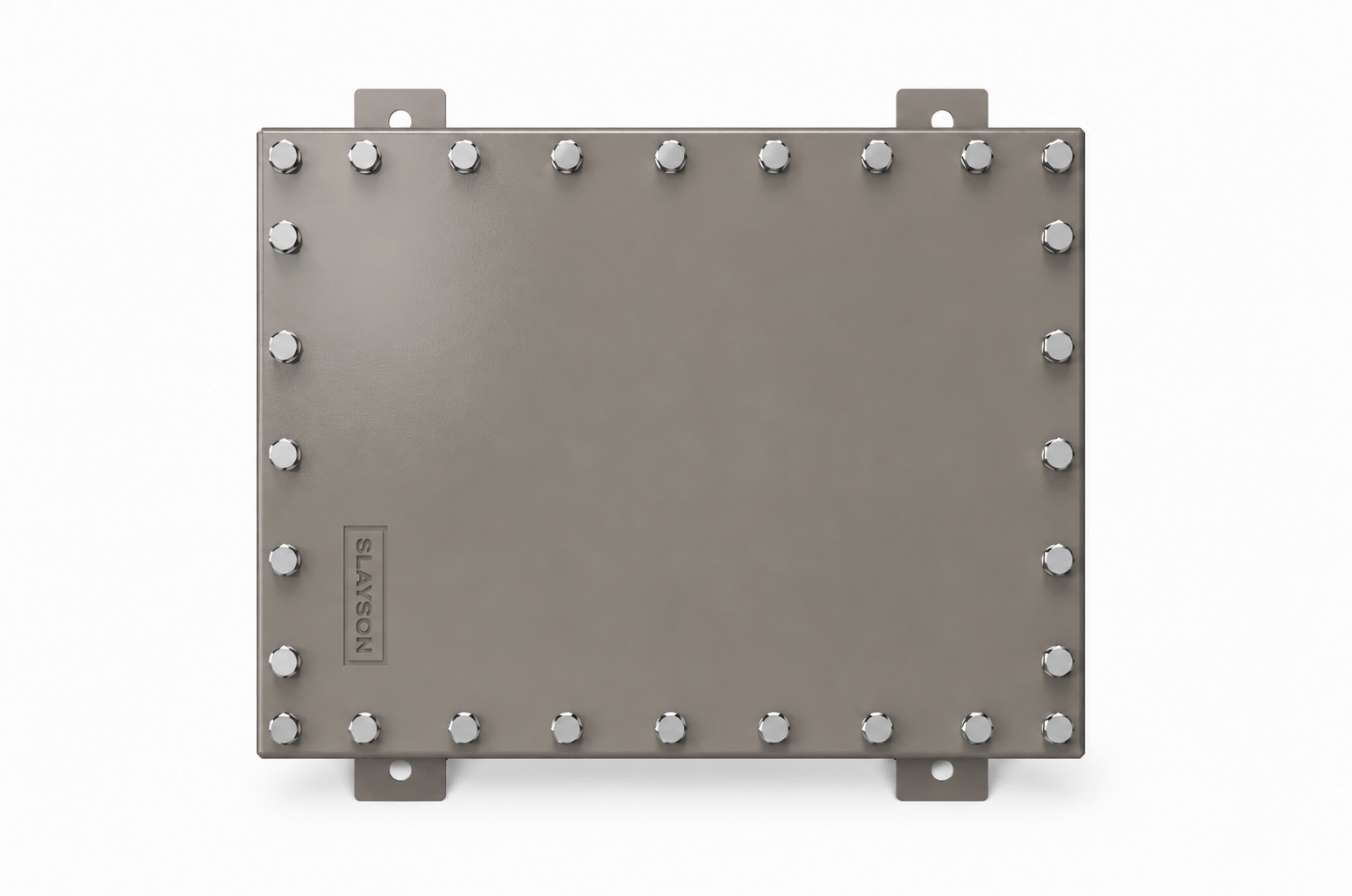

The SLAYSON® COMPACT SUBMERSIBLE ENCLOSURE Series has been engineered for locations where space is limited or restricted, and is rated NEMA 6P/ IP68 for partial or prolonged submersion. It will protect against particle and liquid ingress up to depths of 15ft/5m.

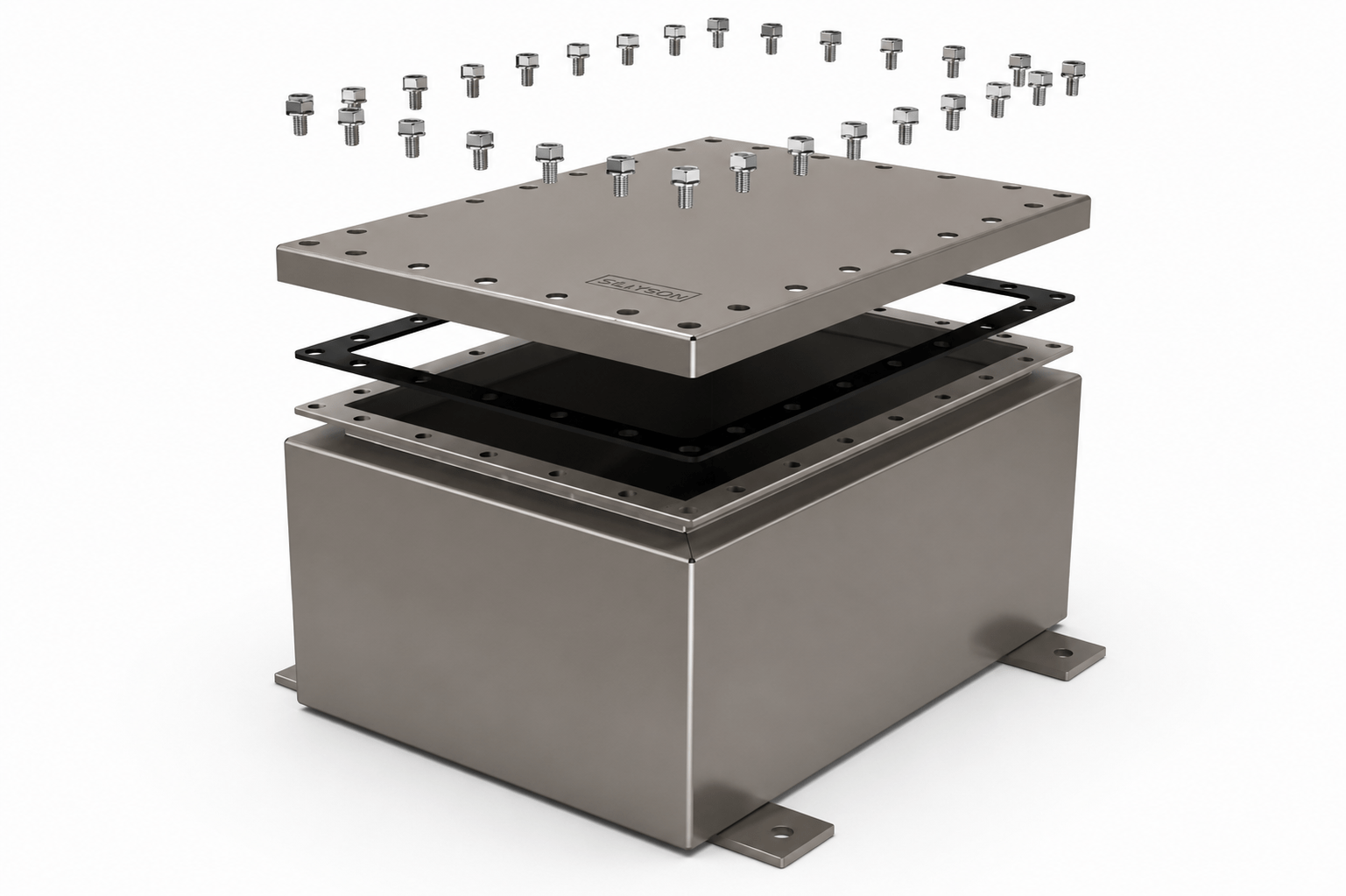

SLAYSON®COMPACT SUBMERSIBLE ENCLOSURE are a smaller version of the Standard Submersible enclosure. The COMPACT SUBMERSIBLE Series is available in a variety of sizes (10″x 10″ to 20″x 20″); each one is easily modified with our assortment of accessories. SLAYSON® design and engineer teams work closely with clients to ensure delivery of the exact enclosure needed.

If you cannot find the size you need, SLAYSON® will design and engineer a custom COMPACT SUBMERSIBLE ENCLOSURE to meet your requirements.
