SUBMERSIBLE COMPACT OVERVIEW

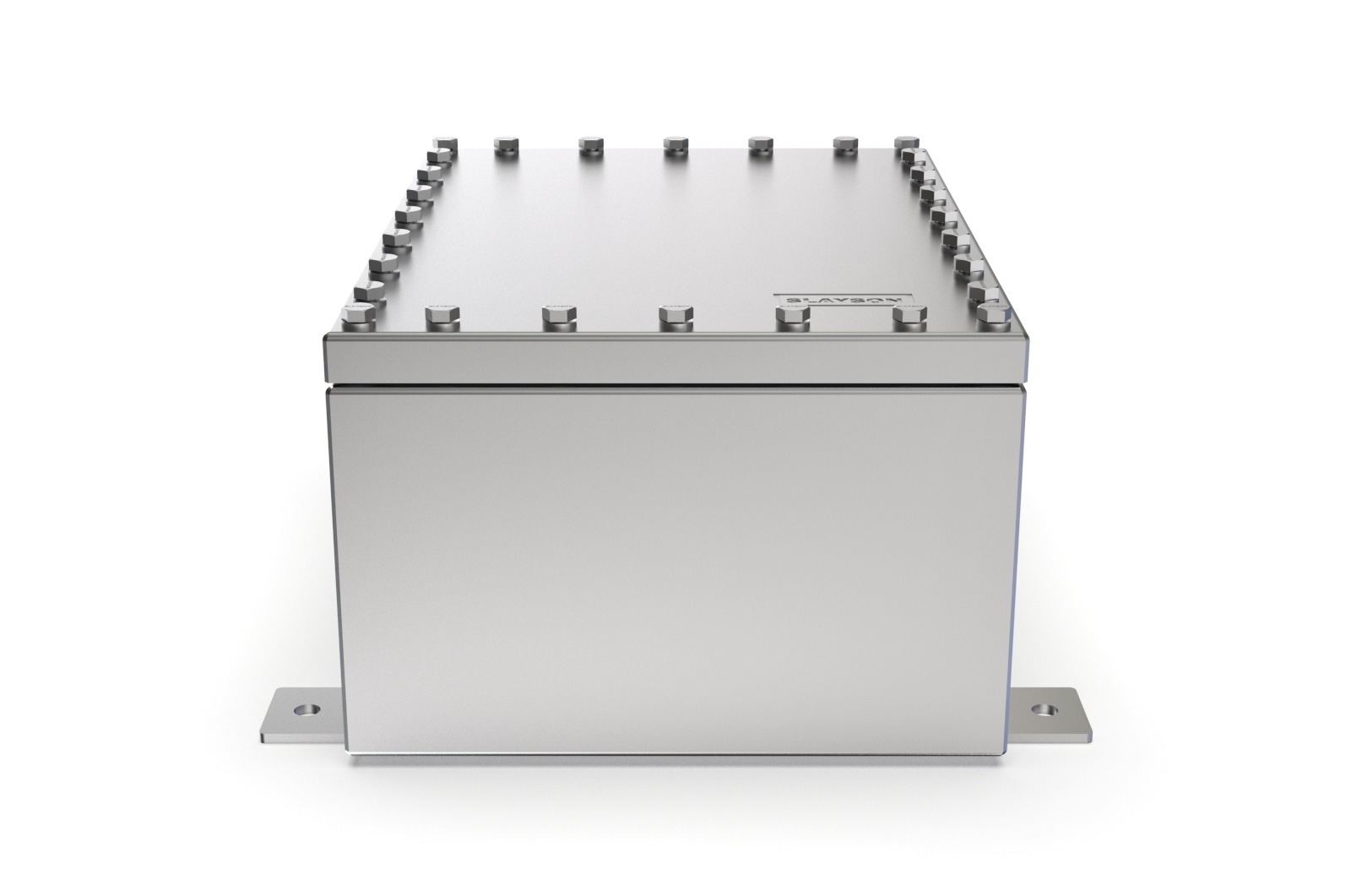

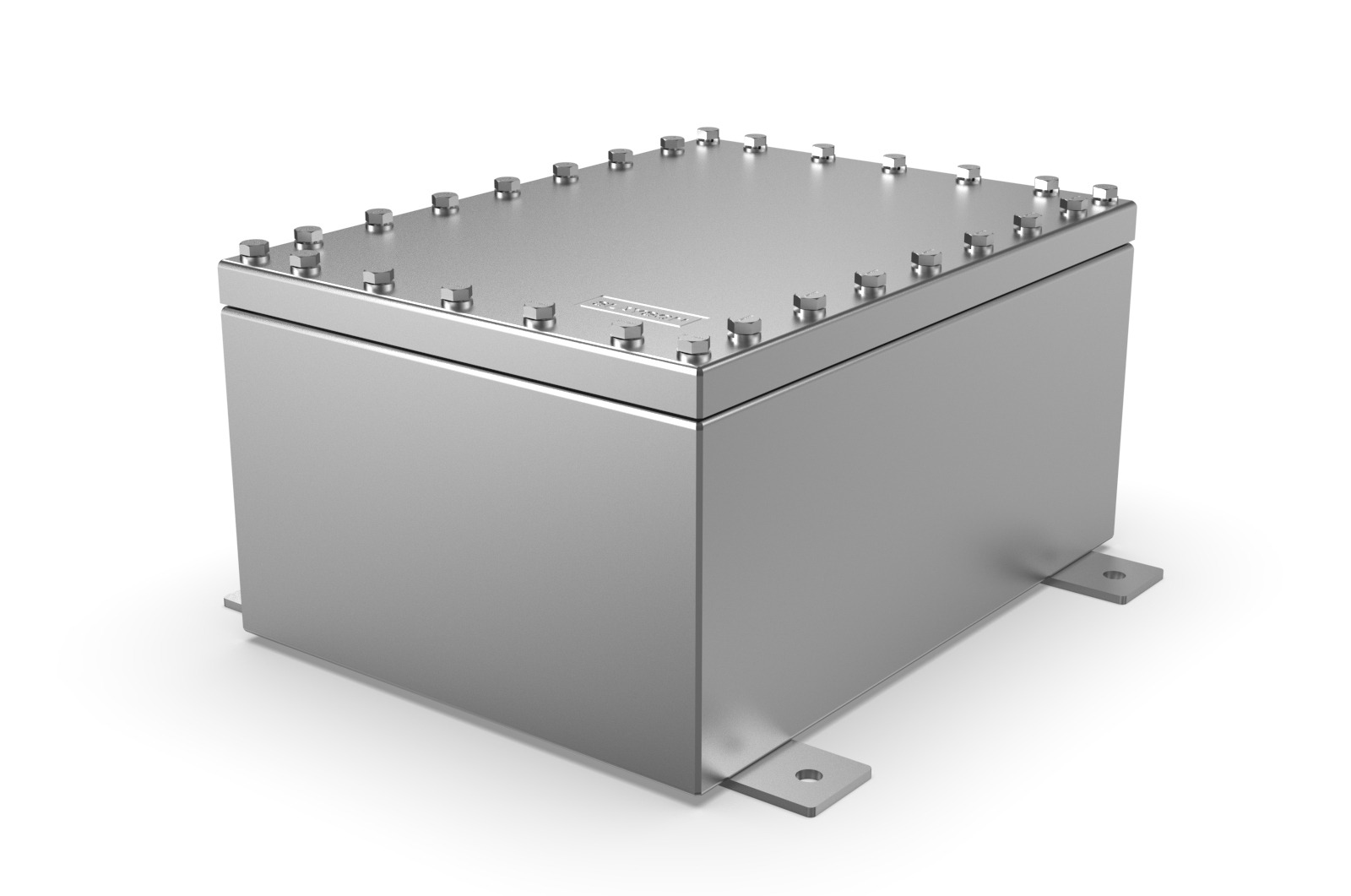

The SLAYSON Compact Submersible Series has been engineered for locations where space is limited or restricted, and is rated NEMA 6P/ IP68 for partial or prolonged submersion. It will protect against particle and liquid ingress up to depths of 15ft/5m. The Compact Submersible Series comes standard in corrosion and impact resistant 14g 316 Marine Grade Stainless Steel making it capable of protecting your vital electrical equipment in harsh environments.

SLAYSON Compact Submersible enclosures are a smaller version of the Standard Submersible enclosure. The Compact Submersible Series is available in a variety of sizes (10″x 10″ to 20″x 20″); each one is easily modified with our assortment of accessories. SLAYSON design and engineer teams work closely with clients to ensure delivery of the exact enclosure needed.

If you cannot find the size you need, SLAYSON will design and engineer a custom Compact Submersible enclosure to meet your requirements.

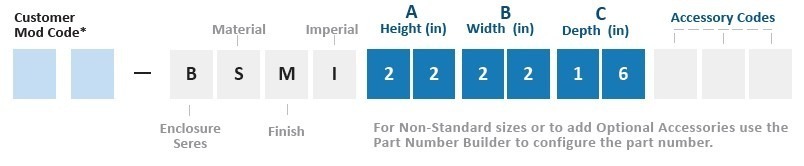

Part Number Material Code Builder

BSMI – Type 316 Marine Grade Stainless Steel (14 gauge)

BAMI – Aluminum (0.064″)

IMPERIAL A B C D E INTERNAL MOUNT PLATE
PART NUMBER Height Width Depth Mount Height Mount Width Height Width Gauge
in mm in mm in mm in mm in mm in mm in mm
BSMI363620 36 914.4 36 914.4 20 508.0 32 812.8 38 965.2 32 812.8 32 812.8 14
BSMI363616 36 914.4 36 914.4 16 406.4 32 812.8 38 965.2 32 812.8 32 812.8 14
BSMI363612 36 914.4 36 914.4 12 304.8 32 812.8 38 965.2 32 812.8 32 812.8 14
BSMI363020 36 914.4 30 762.0 20 508.0 32 812.8 32 812.8 32 812.8 26 660.4 14
BSMI363016 36 914.4 30 762.0 16 406.4 32 812.8 32 812.8 32 812.8 26 660.4 14
BSMI363012 36 914.4 30 762.0 12 304.8 32 812.8 32 812.8 32 812.8 26 660.4 14
BSMI362420 36 914.4 24 609.6 20 508.0 32 812.8 26 660.4 32 812.8 20 508.0 14
BSMI362416 36 914.4 24 609.6 16 406.4 32 812.8 26 660.4 32 812.8 20 508.0 14
BSMI362412 36 914.4 24 609.6 12 304.8 32 812.8 26 660.4 32 812.8 20 508.0 14
BSMI343416 34 863.6 34 863.6 16 406.4 30 762.0 36 914.4 30 762.0 30 762.0 14
BSMI343412 34 863.6 34 863.6 12 304.8 30 762.0 36 914.4 30 762.0 30 762.0 14
BSMI343410 34 863.6 34 863.6 10 254.0 30 762.0 36 914.4 30 762.0 30 762.0 14
BSMI342816 34 863.6 28 711.2 16 406.4 30 762.0 30 762.0 30 762.0 24 609.6 14
BSMI342812 34 863.6 28 711.2 12 304.8 30 762.0 30 762.0 30 762.0 24 609.6 14
BSMI342810 34 863.6 28 711.2 10 254.0 30 762.0 30 762.0 30 762.0 24 609.6 14
BSMI342416 34 863.6 24 609.6 16 406.4 30 762.0 26 660.4 30 762.0 20 508.0 14
BSMI342412 34 863.6 24 609.6 12 304.8 30 762.0 26 660.4 30 762.0 20 508.0 14
BSMI342410 34 863.6 24 609.6 10 254.0 30 762.0 26 660.4 30 762.0 20 508.0 14
BSMI303016 30 762.0 30 762.0 16 406.4 26 660.4 32 812.8 26 660.4 26 660.4 14
BSMI303012 30 762.0 30 762.0 12 304.8 26 660.4 32 812.8 26 660.4 26 660.4 14
BSMI303010 30 762.0 30 762.0 10 254.0 26 660.4 32 812.8 26 660.4 26 660.4 14
BSMI302416 30 762.0 24 609.6 16 406.4 26 660.4 26 660.4 26 660.4 20 508.0 14
BSMI302412 30 762.0 24 609.6 12 304.8 26 660.4 26 660.4 26 660.4 20 508.0 14
BSMI302410 30 762.0 24 609.6 10 254.0 26 660.4 26 660.4 26 660.4 20 508.0 14
BSMI302016 30 762.0 20 508.0 16 406.4 26 660.4 22 558.8 26 660.4 16 406.4 14
BSMI302012 30 762.0 20 508.0 12 304.8 26 660.4 22 558.8 26 660.4 16 406.4 14
BSMI302010 30 762.0 20 508.0 10 254.0 26 660.4 22 558.8 26 660.4 16 406.4 14
BSMI282816 28 711.2 28 711.2 16 406.4 24 609.6 30 762.0 24 609.6 24 609.6 14
BSMI282812 28 711.2 28 711.2 12 304.8 24 609.6 30 762.0 24 609.6 24 609.6 14
BSMI282810 28 711.2 28 711.2 10 254.0 24 609.6 30 762.0 24 609.6 24 609.6 14
BSMI282216 28 711.2 22 558.8 16 406.4 24 609.6 24 609.6 24 609.6 18 457.2 14
BSMI282212 28 711.2 22 558.8 12 304.8 24 609.6 24 609.6 24 609.6 18 457.2 14
BSMI282210 28 711.2 22 558.8 10 254.0 24 609.6 24 609.6 24 609.6 18 457.2 14
BSMI281812 28 711.2 18 457.2 12 304.8 24 609.6 20 508.0 24 609.6 14 355.6 14
BSMI281810 28 711.2 18 457.2 10 254.0 24 609.6 20 508.0 24 609.6 14 355.6 14
BSMI281808 28 711.2 18 457.2 08 203.2 24 609.6 20 508.0 24 609.6 14 355.6 14
BSMI262612 26 660.4 26 660.4 12 304.8 22 558.8 28 711.2 22 558.8 22 558.8 14
BSMI262610 26 660.4 26 660.4 10 254.0 22 558.8 28 711.2 22 558.8 22 558.8 14
BSMI262608 26 660.4 26 660.4 08 203.2 22 558.8 28 711.2 22 558.8 22 558.8 14
BSMI262012 26 660.4 20 508.0 12 304.8 22 558.8 22 558.8 22 558.8 16 406.4 14
BSMI262010 26 660.4 20 508.0 10 254.0 22 558.8 22 558.8 22 558.8 16 406.4 14
BSMI262008 26 660.4 20 508.0 08 203.2 22 558.8 22 558.8 22 558.8 16 406.4 14
BSMI261612 26 660.4 16 406.4 12 304.8 22 558.8 18 457.2 22 558.8 12 304.8 14
BSMI261610 26 660.4 16 406.4 10 254.0 22 558.8 18 457.2 22 558.8 12 304.8 14
BSMI261608 26 660.4 16 406.4 08 203.2 22 558.8 18 457.2 22 558.8 12 304.8 14
BSMI242412 24 609.6 24 609.6 12 304.8 20 508.0 26 660.4 20 508.0 20 508.0 14
BSMI242410 24 609.6 24 609.6 10 254.0 20 508.0 26 660.4 20 508.0 20 508.0 14
BSMI242408 24 609.6 24 609.6 08 203.2 20 508.0 26 660.4 20 508.0 20 508.0 14
BSMI241812 24 609.6 18 457.2 12 304.8 20 508.0 20 508.0 20 508.0 14 355.6 14
BSMI241810 24 609.6 18 457.2 10 254.0 20 508.0 20 508.0 20 508.0 14 355.6 14
BSMI241808 24 609.6 18 457.2 08 203.2 20 508.0 20 508.0 20 508.0 14 355.6 14
BSMI241412 24 609.6 14 355.6 12 304.8 20 508.0 16 406.4 20 508.0 10 254.0 14
BSMI241410 24 609.6 14 355.6 10 254.0 20 508.0 16 406.4 20 508.0 10 254.0 14
BSMI241408 24 609.6 14 355.6 08 203.2 20 508.0 16 406.4 20 508.0 10 254.0 14
METRIC A B C D E INTERNAL MOUNT PLATE
PART NUMBER Height Width Depth Mount Height Mount Width Height Width Gauge
cm mm cm mm cm mm cm mm cm mm cm mm cm mm
BSM909050 90 900.0 90 900.0 50 500.0 80 800.0 95 950.0 80 800.0 80 800.0 2.00
BSM909040 90 900.0 90 900.0 40 400.0 80 800.0 95 950.0 80 800.0 80 800.0 2.00
BSM909030 90 900.0 90 900.0 30 300.0 80 800.0 95 950.0 80 800.0 80 800.0 2.00
BSM907550 90 900.0 75 750.0 50 500.0 80 800.0 80 800.0 80 800.0 65 650.0 2.00
BSM907540 90 900.0 75 750.0 40 400.0 80 800.0 80 800.0 80 800.0 65 650.0 2.00
BSM907530 90 900.0 75 750.0 30 300.0 80 800.0 80 800.0 80 800.0 65 650.0 2.00
BSM906050 90 900.0 60 600.0 50 500.0 80 800.0 65 650.0 80 800.0 50 500.0 2.00
BSM906040 90 900.0 60 600.0 40 400.0 80 800.0 65 650.0 80 800.0 50 500.0 2.00
BSM906030 90 900.0 60 600.0 30 300.0 80 800.0 65 650.0 80 800.0 50 500.0 2.00
BSM858540 85 850.0 85 850.0 40 400.0 75 750.0 90 900.0 75 750.0 75 750.0 2.00
BSM858530 85 850.0 85 850.0 30 300.0 75 750.0 90 900.0 75 750.0 75 750.0 2.00
BSM858525 85 850.0 85 850.0 25 250.0 75 750.0 90 900.0 75 750.0 75 750.0 2.00
BSM857040 85 850.0 70 700.0 40 400.0 75 750.0 75 750.0 75 750.0 60 600.0 2.00
BSM857030 85 850.0 70 700.0 30 300.0 75 750.0 75 750.0 75 750.0 60 600.0 2.00
BSM857025 85 850.0 70 700.0 25 250.0 75 750.0 75 750.0 75 750.0 60 600.0 2.00
BSM856040 85 850.0 60 600.0 40 400.0 75 750.0 65 650.0 75 750.0 50 500.0 2.00
BSM856030 85 850.0 60 600.0 30 300.0 75 750.0 65 650.0 75 750.0 50 500.0 2.00
BSM856025 85 850.0 60 600.0 25 250.0 75 750.0 65 650.0 75 750.0 50 500.0 2.00
BSM757540 75 750.0 75 750.0 40 400.0 65 650.0 80 800.0 65 650.0 65 650.0 2.00
BSM757530 75 750.0 75 750.0 30 300.0 65 650.0 80 800.0 65 650.0 65 650.0 2.00
BSM757525 75 750.0 75 750.0 25 250.0 65 650.0 80 800.0 65 650.0 65 650.0 2.00
BSM766040 75 750.0 60 600.0 40 400.0 65 650.0 65 650.0 65 650.0 50 500.0 2.00
BSM756030 75 750.0 60 600.0 30 300.0 65 650.0 65 650.0 65 650.0 50 500.0 2.00
BSM756025 75 750.0 60 600.0 25 250.0 65 650.0 65 650.0 65 650.0 50 500.0 2.00
BSM755040 75 750.0 50 500.0 40 400.0 65 650.0 55 550.0 65 650.0 40 400.0 2.00
BSM755030 75 750.0 50 500.0 30 300.0 65 650.0 55 550.0 65 650.0 40 400.0 2.00
BSM755025 75 750.0 50 500.0 25 250.0 65 650.0 55 550.0 65 650.0 40 400.0 2.00
BSM707040 70 700.0 70 700.0 40 400.0 60 600.0 75 750.0 60 600.0 60 600.0 2.00
BSM707030 70 700.0 70 700.0 30 300.0 60 600.0 75 750.0 60 600.0 60 600.0 2.00
BSM707025 70 700.0 70 700.0 25 250.0 60 600.0 75 750.0 60 600.0 60 600.0 2.00
BSM705540 70 700.0 55 550.0 40 400.0 60 600.0 60 600.0 60 600.0 45 450.0 2.00
BSM705530 70 700.0 55 550.0 30 300.0 60 600.0 60 600.0 60 600.0 45 450.0 2.00
BSM795525 70 700.0 55 550.0 25 250.0 60 600.0 60 600.0 60 600.0 45 450.0 2.00
BSM704530 70 700.0 45 450.0 30 300.0 60 600.0 50 500.0 60 600.0 35 350.0 2.00
BSM704525 70 700.0 45 450.0 25 250.0 60 600.0 50 500.0 60 600.0 35 350.0 2.00
BSM704520 70 700.0 45 450.0 20 200.0 60 600.0 50 500.0 60 600.0 35 350.0 2.00
BSM656530 65 650.0 65 650.0 30 300.0 55 550.0 70 700.0 55 550.0 55 550.0 2.00
BSM656525 65 650.0 65 650.0 25 250.0 55 550.0 70 700.0 55 550.0 55 550.0 2.00
BSM656520 65 650.0 65 650.0 20 200.0 55 550.0 70 700.0 55 550.0 55 550.0 2.00
BSM655030 65 650.0 50 500.0 30 300.0 55 550.0 55 550.0 55 550.0 40 400.0 2.00
BSM655025 65 650.0 50 500.0 25 250.0 55 550.0 55 550.0 55 550.0 40 400.0 2.00
BSM655020 65 650.0 50 500.0 20 200.0 55 550.0 55 550.0 55 550.0 40 400.0 2.00
BSM654030 65 650.0 40 400.0 30 300.0 55 550.0 45 450.0 55 550.0 30 300.0 2.00
BSM654025 65 650.0 40 400.0 25 250.0 55 550.0 45 450.0 55 550.0 30 300.0 2.00
BSM654020 65 650.0 40 400.0 20 200.0 55 550.0 45 450.0 55 550.0 30 300.0 2.00
BSM606030 60 600.0 60 600.0 30 300.0 50 500.0 65 650.0 50 500.0 50 500.0 2.00
BSM606025 60 600.0 60 600.0 25 250.0 50 500.0 65 650.0 50 500.0 50 500.0 2.00
BSM606020 60 600.0 60 600.0 20 200.0 50 500.0 65 650.0 50 500.0 50 500.0 2.00
BSM604530 60 600.0 45 450.0 30 300.0 50 500.0 50 500.0 50 500.0 35 350.0 2.00
BSM604525 60 600.0 45 450.0 25 250.0 50 500.0 50 500.0 50 500.0 35 350.0 2.00
BSM604520 60 600.0 45 450.0 20 200.0 50 500.0 50 500.0 50 500.0 35 350.0 2.00
BSM603530 60 600.0 35 350.0 30 300.0 50 500.0 40 400.0 50 500.0 25 250.0 2.00
BSM603525 60 600.0 35 350.0 25 250.0 50 500.0 40 400.0 50 500.0 25 250.0 2.00
BSM603520 60 600.0 35 350.0 20 200.0 50 500.0 40 400.0 50 500.0 25 250.0 2.00
cad-request

PART NUMBER BUILDER

DEEP STANDARD SUBMERSIBLE ENCLOSURE – BSMI SERIES PART NUMBER BUILDER

*Generated by SLAYSON Engineering for customer specific modifications
